表单

普通表单

新增​

新增普通表单​

普通表单的数据保存接口(含子表数据)

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/addData

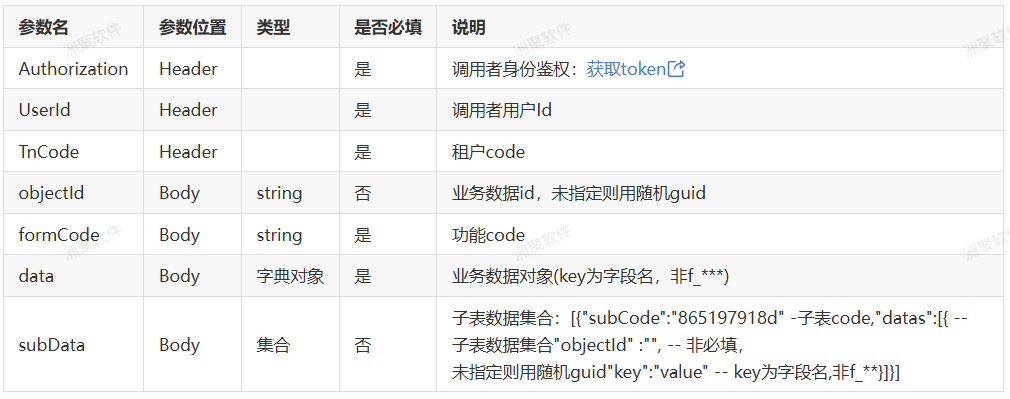

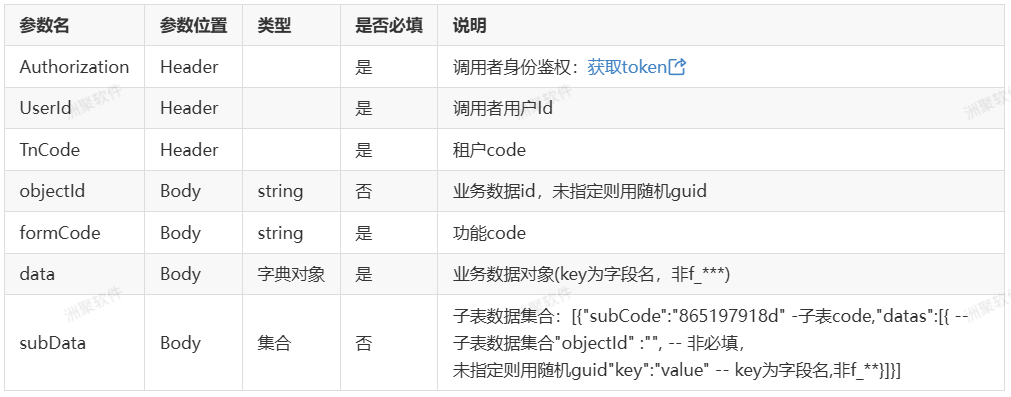

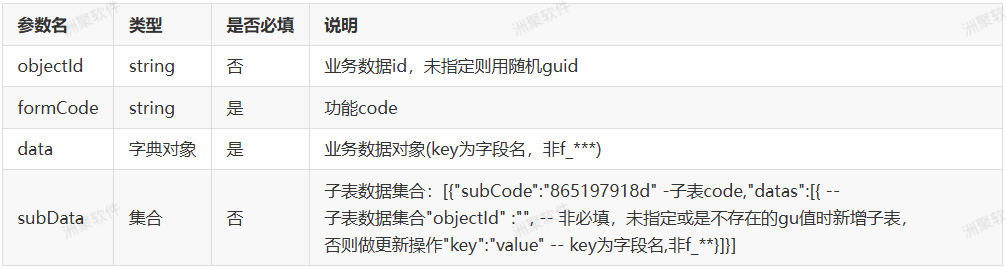

请求实体​

请求示例（不含子表）:

{
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题1",
 "danx": "篮球"
 }
}

请求示例（含子表）:

{
 "objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题1",
 "danx": "篮球"
 },
 "subData": [{
 "subCode": "865197918d",
 "datas": [{
 "wenb":"子表1-标题1",
 "reny":"子表1-内容1"
 },{
 "wenb":"子表1-标题2",
 "reny":"子表1-内容2"
 }]
 }]
}

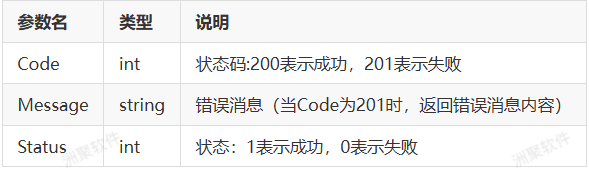

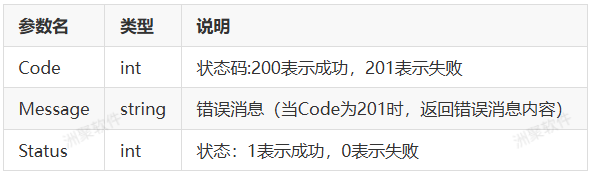

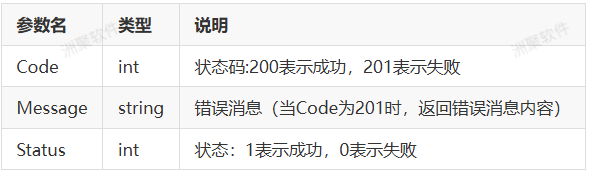

返回结果​

返回示例(成功)：

{
    "Code": 200,
    "Message": "",
    "ExceptionSeqNo": null,
    "Result": true,
    "Status": 1,
    "MessageShowType": 0
}

返回示例(失败)：

{
    "Code": 203,
    "Message": "objectId[205e4ed8-db1f-40c7-9e2d-bf656d53c2c1]该数据已存在",
    "ExceptionSeqNo": null,
    "Result": null,
    "Status": 0,
    "MessageShowType": 0
}

批量新增普通表单​

普通表单的数据批量新增接口(含子表数据)

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/addListData

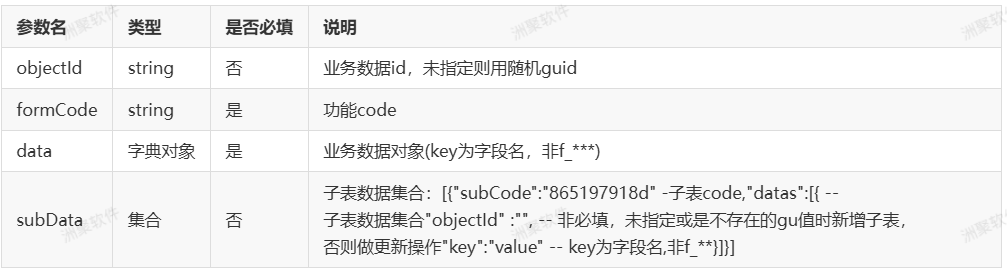

请求实体​

请求示例（不含子表）:

[{
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题1",
 "danx": "篮球"
 }
 },
 {
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题2",
 "danx": "羽毛球"
 }
 }
]

请求示例（含子表）:

[{
 "objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题1",
 "danx": "篮球"
 },
 "subData": [{
 "subCode": "865197918d",
 "datas": [{
 "wenb": "子表1-标题1",
 "reny": "子表1-内容1"
 }, {
 "wenb": "子表1-标题2",
 "reny": "子表1-内容2"
 }]
 }]
}, {
 "objectId": "305e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题2",
 "danx": "羽毛球"
 },
 "subData": [{
 "subCode": "865197918d",
 "datas": [{
 "wenb": "子表2-标题1",
 "reny": "子表2-内容1"
 }, {
 "wenb": "子表2-标题2",
 "reny": "子表2-内容2"
 }]
 }]
}]

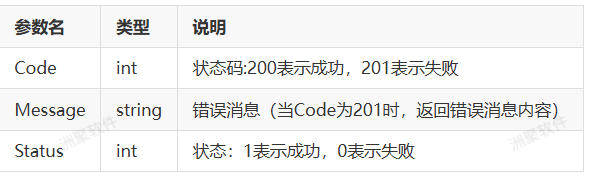

返回结果​

批量新增普通表单-绕过平台规则，直接入库​

普通表单的数据批量新增接口(含子表数据)

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/BatchDirectAddData

请求示例（不含子表）:

{
  "formCode": "46b97a76f61338bd",
  "data": {
    "wenb": "标题1",
    "danx": "篮球"
  }
},
{
  "formCode": "46b97a76f61338bd",
  "data": {
    "wenb": "标题2",
    "danx": "羽毛球"
  }
}

请求示例（含子表）:

[{
"objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
"formCode": "46b97a76f61338bd",
"data": {
"wenb": "标题1",
"danx": "篮球"
},
"subData": [{
"subCode": "865197918d",
"datas": [{
"wenb": "子表1-标题1",
"reny": "子表1-内容1"
}, {
"wenb": "子表1-标题2",
"reny": "子表1-内容2"
}]
}]
}, {
"objectId": "305e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
"formCode": "46b97a76f61338bd",
"data": {
"wenb": "标题2",
"danx": "羽毛球"
},
"subData": [{
"subCode": "865197918d",
"datas": [{
"wenb": "子表2-标题1",
"reny": "子表2-内容1"
}, {
"wenb": "子表2-标题2",
"reny": "子表2-内容2"
}]
}]
}]

更新​

更新普通表单​

普通表单的数据更新接口(含子表数据)

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/updateData

请求实体​

请求示例（不含子表）:

{
  "objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
    "formCode": "46b97a76f61338bd",
    "data": {
        "wenb": "标题1新",
        "danx": "篮球"
    }
}

请求示例（含子表）:

{
 "objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题2新",
 "danx": "篮球"
 },
 "subData": [{
 "subCode": "865197918d",
 "datas": [{
 "objectId":"a297626a-4135-4400-b225-895a2b73643b",
 "wenb":"子表1-标题11111",
 "reny":"子表1-内容11111"
 },{
 "wenb":"子表1-标题3",
 "reny":"子表1-内容3"
 }]
 }]
}

返回结果​

批量更新普通表单​

普通表单的数据批量接口(含子表数据)

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/updateListData

请求实体​

请求示例（不含子表）:

[{
 "objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题1新",
 "danx": "篮球"
 }
 },
 {
 "objectId": "305e4ed8-db1f-40c7-9e2d-bf656d53c123",
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题2新",
 "danx": "羽毛球"
 }
 }
]

请求示例（含子表）:

[{
 "objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题1",
 "danx": "篮球"
 },
 "subData": [{
 "subCode": "865197918d",
 "datas": [{
 "objectId":"a297626a-4135-4400-b225-895a2b73643b",
 "wenb": "子表1-标题1",
 "reny": "子表1-内容1"
 }, {
 "wenb": "子表1-标题2",
 "reny": "子表1-内容2"
 }]
 }]
}, {
 "objectId": "305e4ed8-db1f-40c7-9e2d-bf656d53c123",
 "formCode": "46b97a76f61338bd",
 "data": {
 "wenb": "标题2",
 "danx": "羽毛球"
 },
 "subData": [{
 "subCode": "865197918d",
 "datas": [{
 "objectId":"4597626a-4135-4400-b225-895a2b736234",
 "wenb": "子表2-标题1",
 "reny": "子表2-内容1"
 }, {
 "wenb": "子表2-标题2",
 "reny": "子表2-内容2"
 }]
 }]
}]

返回结果​

批量更新普通表单-绕过平台规则，直接入库​

普通表单的数据批量接口(含子表数据)

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/BatchDirectUpdateData

请求示例（不含子表）:

[{
"objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
"formCode": "46b97a76f61338bd",
"data": {
"wenb": "标题1新",
"danx": "篮球"
}
},
{
"objectId": "305e4ed8-db1f-40c7-9e2d-bf656d53c123",
"formCode": "46b97a76f61338bd",
"data": {
"wenb": "标题2新",
"danx": "羽毛球"
}
}
]

请求示例（含子表）:

[{
"objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
"formCode": "46b97a76f61338bd",
"data": {
"wenb": "标题1",
"danx": "篮球"
},
"subData": [{
"subCode": "865197918d",
"datas": [{
"objectId":"a297626a-4135-4400-b225-895a2b73643b",
"wenb": "子表1-标题1",
"reny": "子表1-内容1"
}, {
"wenb": "子表1-标题2",
"reny": "子表1-内容2"
}]
}]
}, {
"objectId": "305e4ed8-db1f-40c7-9e2d-bf656d53c123",
"formCode": "46b97a76f61338bd",
"data": {
"wenb": "标题2",
"danx": "羽毛球"
},
"subData": [{
"subCode": "865197918d",
"datas": [{
"objectId":"4597626a-4135-4400-b225-895a2b736234",
"wenb": "子表2-标题1",
"reny": "子表2-内容1"
}, {
"wenb": "子表2-标题2",
"reny": "子表2-内容2"
}]
}]
}]

删除​

数据删除​

业务数据删除接口

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/deleteData

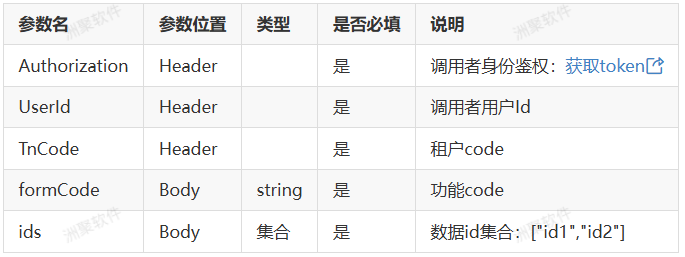

请求实体​

请求示例:

{
 "formCode": "12414b93b85753db",
 "ids": ["e357a86f-662c-48f3-82ff-6a6818e2ae4f","205e4ed8-db1f-40c7-9e2d-bf656d53c2c1"]
}

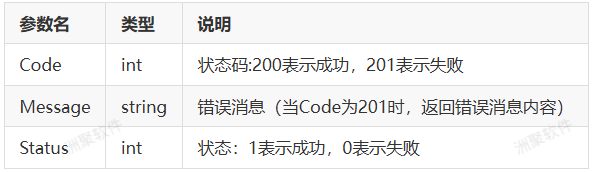

返回结果​

工作流表单​

修改流程数据​

工作流表单的数据修改接口(含子表数据)，操作人与流程当前处理人可以不一致。

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/updateFlowData

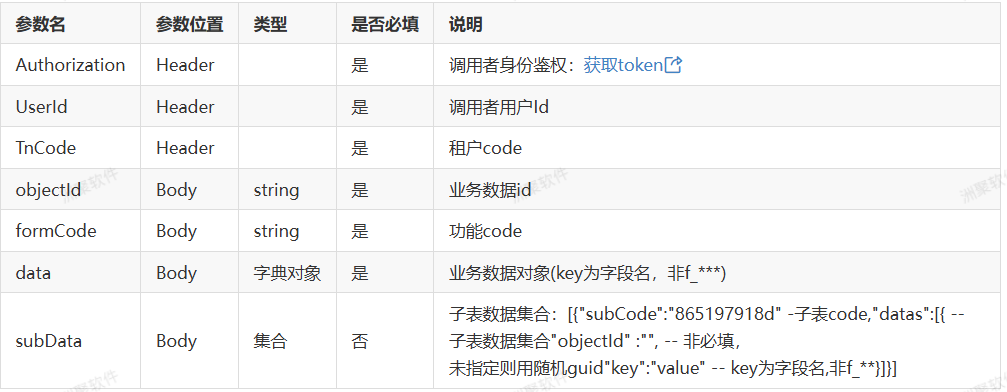

请求实体​

请求示例（不含子表）:

{
  "objectId": "88fcbbae-a7ef-4ac1-9db9-4ead9f7b06fc",
    "formCode": "12414b93b85753db",
    "data": {
        "web": "标题1",
        "danx": "选项1"
    }
}

请求示例（含子表）:

{
 "objectId":"88fcbbae-a7ef-4ac1-9db9-4ead9f7b06fc",
 "formCode": "12414b93b85753db",
 "data": {
 "web": "标题1",
 "danx": "选项1"
 },
 "subData": [{
 "subCode": "07e2d3c05b",
 "datas": [{
 "wenb":"子表1-标题1",
 "reny":"子表1-内容1"
 },{
 "wenb":"子表1-标题2",
 "reny":"子表1-内容2"
 }]
 }]
}

返回结果​

提交（发起/流转中提交）​

工作流表单的数据提交接口(含子表数据)

流转中提交时，操作人必须与流程当前处理人一致

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/submitData

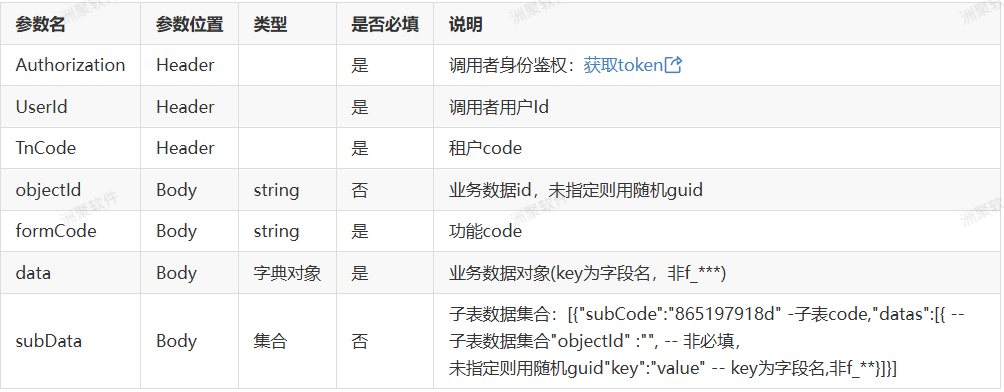

请求实体​

请求示例（不含子表）:

{
    "formCode": "12414b93b85753db",
    "data": {
        "web": "标题1",
        "danx": "选项1"
    }
}

请求示例（含子表）:

{
 "formCode": "12414b93b85753db",
 "data": {
 "web": "标题1",
 "danx": "选项1"
 },
 "subData": [{
 "subCode": "07e2d3c05b",
 "datas": [{
 "wenb":"子表1-标题1",
 "reny":"子表1-内容1"
 },{
 "wenb":"子表1-标题2",
 "reny":"子表1-内容2"
 }]
 }]
}

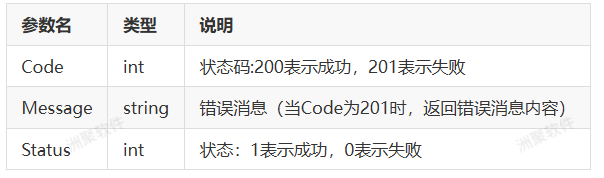

返回结果​

批量提交​

工作流表单的数据提交接口(含子表数据) 流转中提交时，操作人必须与流程当前处理人一致

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/submitData

请求实体​

请求示例（不含子表）:

[{
 "formCode": "12414b93b85753db",
 "data": {
 "web": "标题1",
 "danx": "选项1"
 }
 },
 {
 "formCode": "12414b93b85753db",
 "data": {
 "web": "标题1",
 "danx": "选项1"
 }
 }
]

请求示例（含子表）:

[{
 "formCode": "12414b93b85753db",
 "data": {
 "web": "标题1",
 "danx": "选项1"
 },
 "subData": [{
 "subCode": "07e2d3c05b",
 "datas": [{
 "wenb": "子表1-标题1",
 "reny": "子表1-内容1"
 }, {
 "wenb": "子表1-标题2",
 "reny": "子表1-内容2"
 }]
 }]
 },
 {
 "formCode": "12414b93b85753db",
 "data": {
 "web": "标题2",
 "danx": "选项2"
 },
 "subData": [{
 "subCode": "07e2d3c05b",
 "datas": [{
 "wenb": "子表2-标题1",
 "reny": "子表2-内容1"
 }, {
 "wenb": "子表2-标题2",
 "reny": "子表2-内容2"
 }]
 }]
 }
]

返回结果​

子表表单​

新增子表数据​

子表数据新增接口

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/addSubData

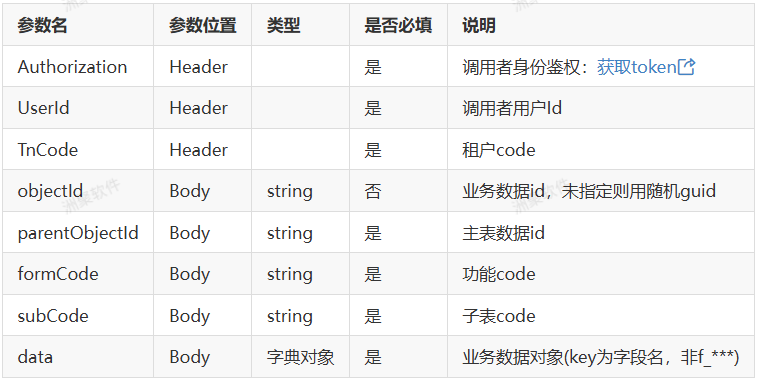

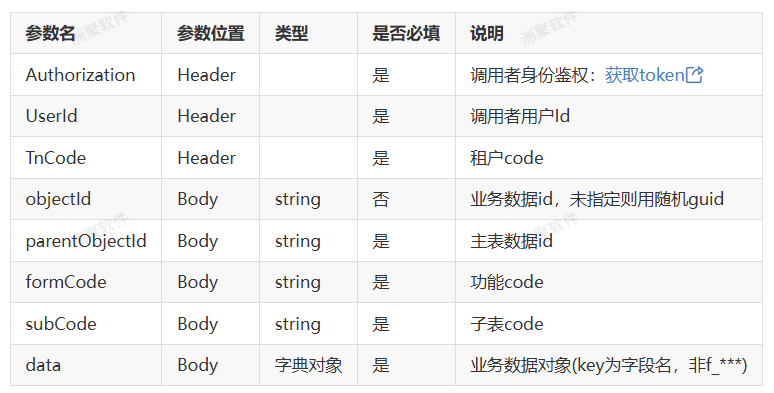

请求实体​

请求示例:

{
    "objectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cf",
    "parentObjectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
    "parentCode": "46b97a76f61338bd",
    "subCode": "865197918d",
    "data": {
        "wenb": "标题new",
        "reny": "值new"
    }
}

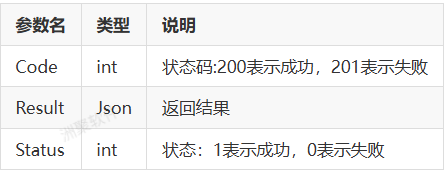

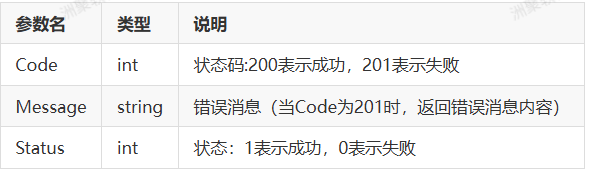

返回结果​

批量新增子表数据​

子表数据批量新增接口

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/addListSubData

请求实体​

请求示例:

[{
 "parentObjectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
 "parentCode": "46b97a76f61338bd",
 "subCode": "865197918d",
 "data": {
 "wenb": "标题1new",
 "reny": "值1new"
 }
},{
 "parentObjectId": "205e4ed8-db1f-40c7-9e2d-bf656d53c2cd",
 "parentCode": "46b97a76f61338bd",
 "subCode": "865197918d",
 "data": {
 "wenb": "标题2new",
 "reny": "值2new"
 }
}]

返回结果​

待办已办​

已办列表查询接口​

查询用户下所有已办数据明细

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/cartFinishWorkItems

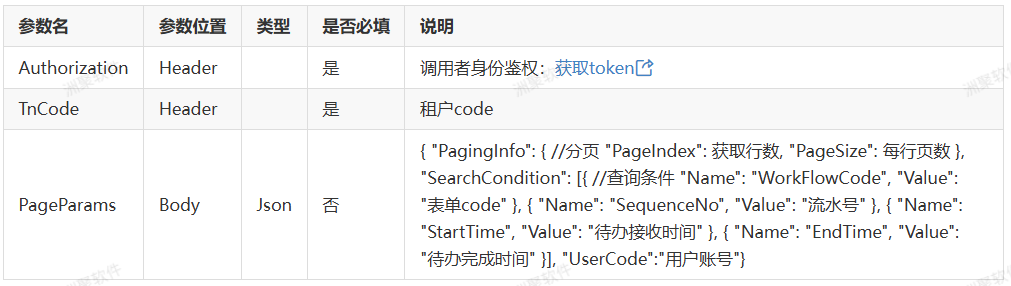

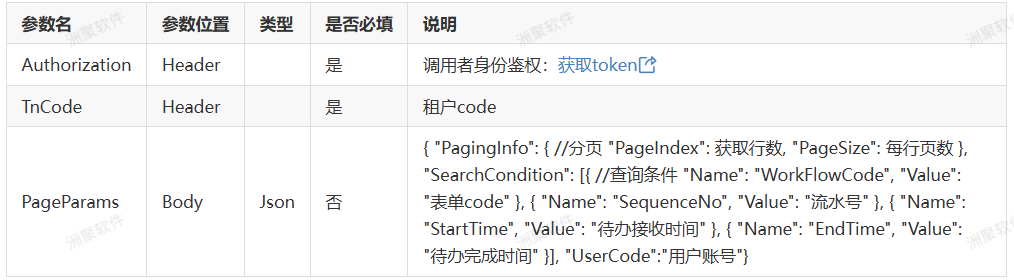

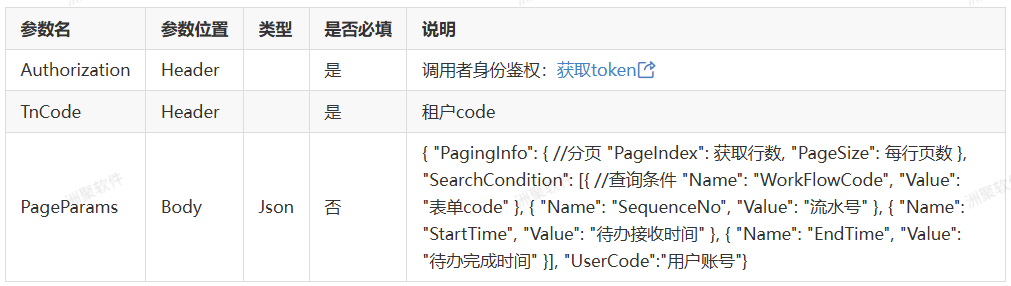

请求实体​

请求示例:

{
 "PagingInfo": {
 "PageIndex": 1,
 "PageSize": 5
 },
 "SearchCondition": [{
 "Name": "WorkFlowCode",
 "Value": ""
 }, {
 "Name": "SequenceNo",
 "Value": ""
 }, {
 "Name": "StartTime",
 "Value": ""
 }, {
 "Name": "EndTime",
 "Value": ""
 }],
 "UserCode":"Administrator"
}

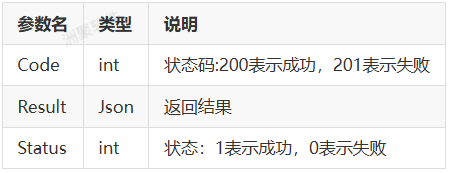

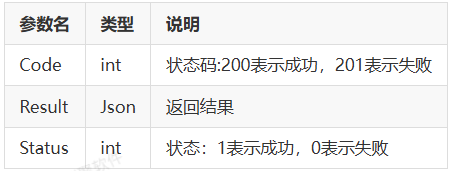

返回结果​

待办列表查询接口​

查询用户下所有待办数据明细

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/cartUnFinishWorkItems

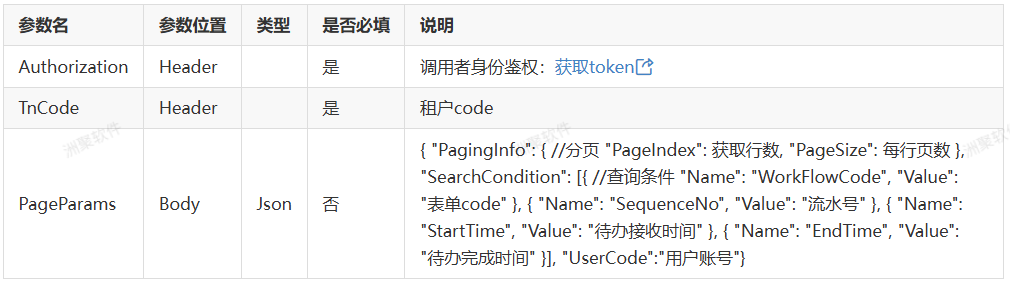

请求实体​

请求示例:

{
 "PagingInfo": {
 "PageIndex": 1,
 "PageSize": 5
 },
 "SearchCondition": [{
 "Name": "WorkFlowCode",
 "Value": ""
 }, {
 "Name": "SequenceNo",
 "Value": ""
 }, {
 "Name": "StartTime",
 "Value": ""
 }, {
 "Name": "EndTime",
 "Value": ""
 }],
 "UserCode":"Administrator"
}

返回结果​

已阅列表查询接口​

查询用户下所有已阅数据明细

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/cartFinishCirculateItems

请求实体​

请求示例:

{
    "PagingInfo": {
        "PageIndex": 1,
        "PageSize": 5
    },
    "SearchCondition": [{
        "Name": "WorkFlowCode",
        "Value": ""
    }, {
        "Name": "SequenceNo",
        "Value": ""
    }, {
        "Name": "StartTime",
        "Value": ""
    }, {
        "Name": "EndTime",
        "Value": ""
    }],
    "UserCode":"Administrator"
}

返回结果​

待阅列表查询接口​

查询用户下所有待阅数据明细

支持版本：Java-2.0;Java-3.0;​

接口​

HttpPost：api/FrontEnd/cartUnFinishCirculateItems

请求实体​

请求示例:

{
    "PagingInfo": {
        "PageIndex": 1,
        "PageSize": 5
    },
    "SearchCondition": [{
        "Name": "WorkFlowCode",
        "Value": ""
    }, {
        "Name": "SequenceNo",
        "Value": ""
    }, {
        "Name": "StartTime",
        "Value": ""
    }, {
        "Name": "EndTime",
        "Value": ""
    }],
    "UserCode":"Administrator"
}

返回结果​

待办总数查询接口​

查询用户下所有待办总数

支持版本：Java-2.0;Java-3.0;​

接口​

HttpGet：api/FrontEnd/getWorkCount/{userCode}

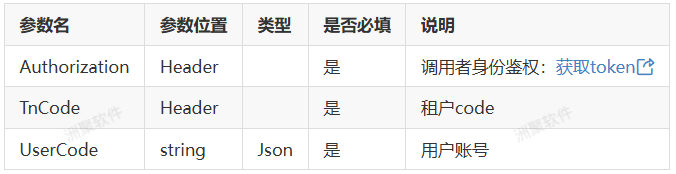

请求实体​

请求示例:

api/FrontEnd/getWorkCount/administrator

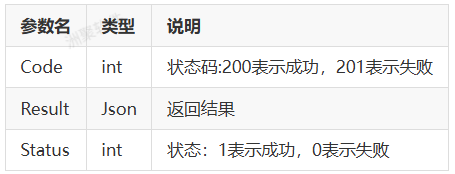

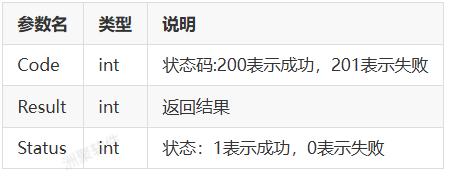

返回结果​
